Mondraker Level XR
- Značka
- Mondraker
- Kategorie
- Horská elektrokola
- Modelový rok
- 2026
- Cena
- 249 999 Kč
- Navštívit

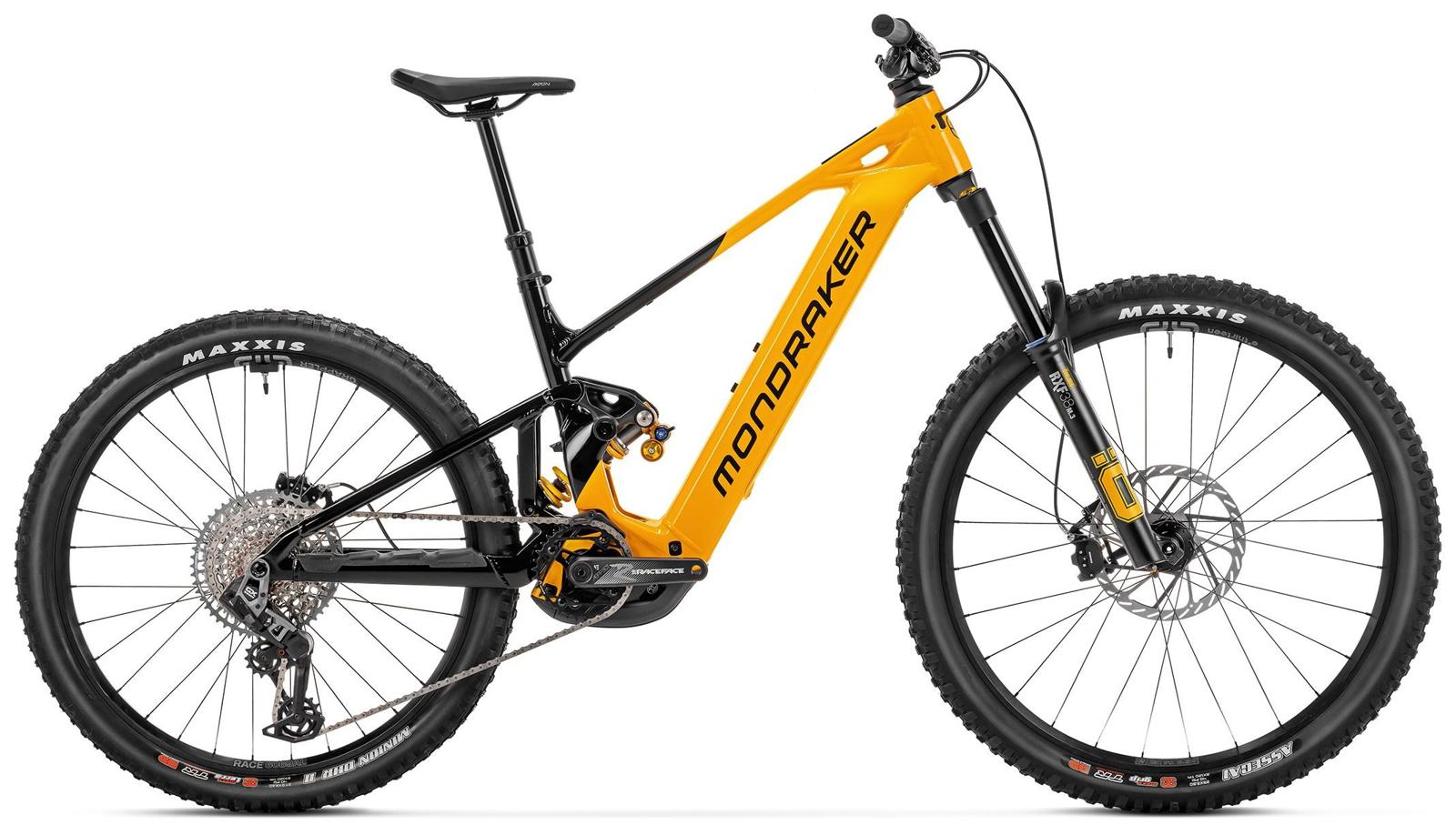

MONDRAKER Level XR, dense yellow
Specifikace Mondraker Level XR
- Sezóna
- jaro/léto26
- Barva
- yellow
- Pohlaví
- UNISEX
- Sport
- cycling PCI
- Rám
- Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers
- Velikosti
- S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
- Zadní tlumič
- Öhlins TTX22M.2 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
- Nastavení tlumiče
- C10 compression, R20 rebound. Spring rate: S size 343 lbs, M size 411 lbs, size ML 457 lbs, L size 502 lbs, XL size 502 lbs
- Vidlice
- Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
- Hlavové složení
- Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45?x45?, bottom 52x40x8x45?x45?
- Představec
- Onoff S9 30mm 0?, Full CNC, 31.8mm barbore
- Řídítka
- Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8? backsweep, 5? upsweep, 31.8mm barbore. L and XL size: 38mm rise.
- Sedlo
- FIZIK Terra Aidon X5 145mm
- Sedlovka
- Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
- Přední brzda
- Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Zadní brzda
- Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Brzdové páčky
- Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust
- Ráfky
- e*thirteen Grappler Race, Hookless 6069 Welded Aluminum\n30mm internal width, tubeless ready, 28F spokes 29 front, 27'5 rear
- Dráty
- e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
- Přední náboj
- e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
- Zadní náboj
- e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub\n
- Přední plášť
- Maxxis Assegai 29x2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead
- Zadní plášť
- Maxxis Minion DHR II 27’5x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead
- Kliky
- Race Face Aeffect ebike, All sizes: 160mm
- Převodník
- Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
- Řetěz
- Sram GX Eagle T-Type, 12s, Powerlock
- Přehazovačka
- Sram GX Eagle AXS T-Type,12s
- Řadící páčka
- Sram Eagle AXS Pod MMX, 12s
- Kazeta
- Sram XS-1275, 10-52T, T-Type, 12s
- Displej
- Kiox 400 / Bosch Mini Remote
- Motor
- Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
- Baterie
- Bosch Powertube 800Wh
- Počet převodů
- 1X12
- Velikost kol
- 29/27,5
- Patka přehazovačky
- Sram UDH
- Hmotnost
- 26,3 kg
- Typ vidlice
- SUSPENSION FORK
- Materiál rámu
- ALUMINIUM
- Gripy
- Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
- Zadní zdvih
- 170 mm
- Přední zdvih
- 180 mm
