Mondraker Crafty Carbon RR S
- Značka
- Mondraker
- Kategorie
- Horská elektrokola
- Modelový rok
- 2026
- Cena
- 249 999 Kč
- Navštívit

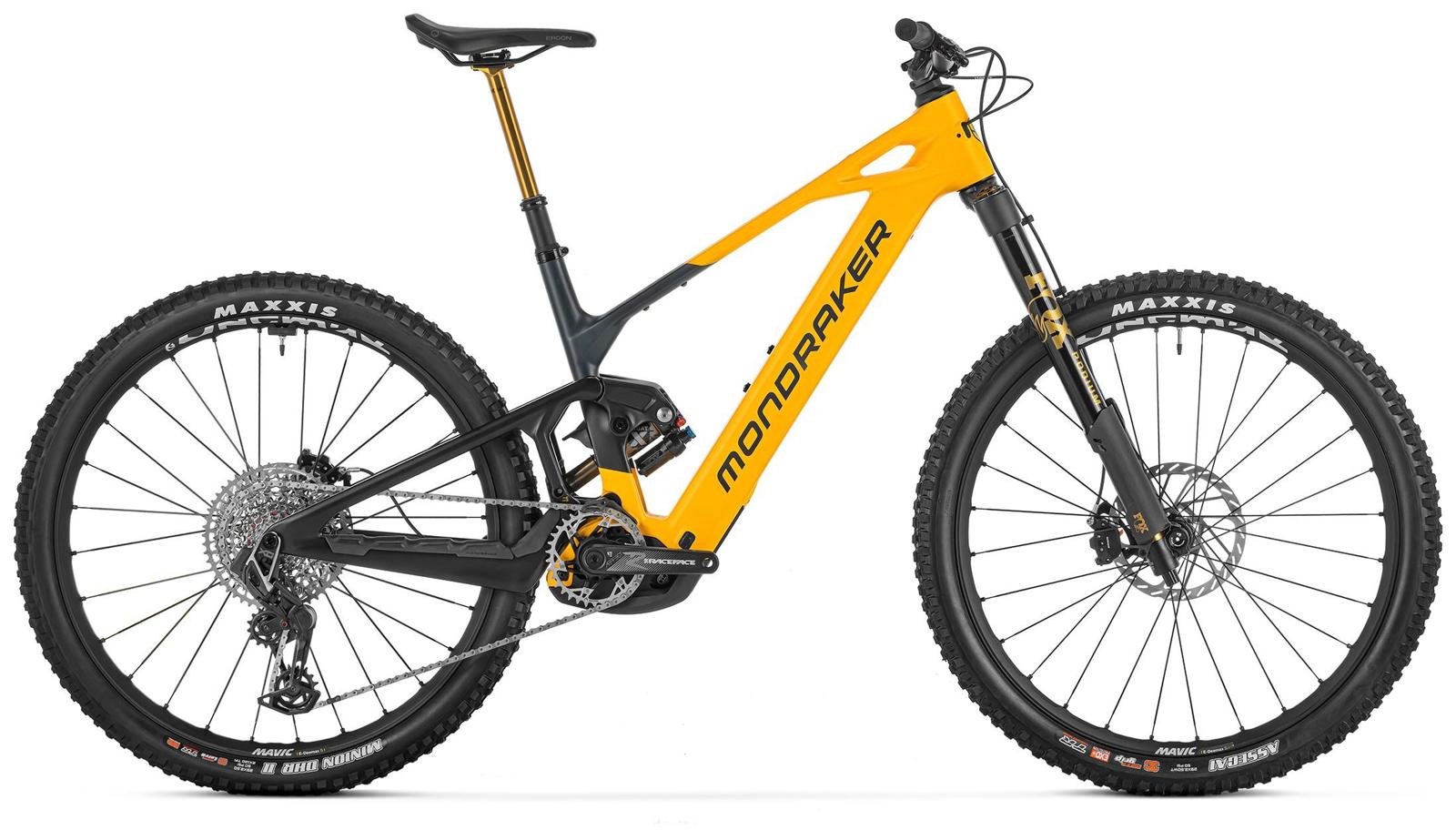

MONDRAKER Crafty Carbon RR S, dense yellow
Specifikace Mondraker Crafty Carbon RR S
- Sezóna
- jaro/léto26
- Barva
- yellow
- Pohlaví
- UNISEX
- Sport
- cycling PCI
- Rám
- Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
- Velikosti
- S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
- Zadní tlumič
- Fox Float-X Factory Kashima EVOL LV, 185x55mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
- Nastavení tlumiče
- CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer
- Vidlice
- Fox Podium 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 20x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
- Hlavové složení
- Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs with blocklock
- Představec
- Onoff S9 30mm 0?, Full CNC, 31.8mm barbore
- Řídítka
- Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8? backsweep, 5? upsweep, 31.8mm barbore. L and XL size: 38mm rise.
- Sedlo
- Ergon SM-10
- Sedlovka
- Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S size: 95mm -120mm, M size: 125mm -150mm, ML size L size: 155mm -180mm, L size: 155mm -180mm, XL size: 185mm -210mm
- Přední brzda
- Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Zadní brzda
- Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Brzdové páčky
- Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust
- Ráfky
- Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
- Dráty
- Mavic straight-pull double butted, contactless lacing
- Přední náboj
- Mavic, Boost 20x110mm, IS 6 bolts
- Zadní náboj
- Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
- Přední plášť
- Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
- Zadní plášť
- Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
- Kliky
- Race Face Aeffect-R ebike, 160mm
- Převodník
- Sram XX Eagle 34T T-Type, direct mount, steel, CL55
- Řetěz
- Sram GX Eagle T-Type, 12s, Powerlock
- Přehazovačka
- Sram X0 Eagle AXS, T-Type, 12s
- Řadící páčka
- Sram Eagle AXS Pod MMX, 12s
- Kazeta
- Sram XS-1275, 10-52T, T-Type, 12s
- Displej
- Kiox 400 / Bosch Mini Remote
- Motor
- Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
- Baterie
- Bosch Powertube 800Wh
- Počet převodů
- 1X12
- Velikost kol
- 29
- Patka přehazovačky
- Sram UDH
- Hmotnost
- 23,9 kg
- Typ vidlice
- SUSPENSION FORK
- Materiál rámu
- carbon
- Gripy
- Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
- Zadní zdvih
- 150 mm
- Přední zdvih
- 160 mm
