Mondraker Crafty Carbon R
- Značka
- Mondraker
- Kategorie
- Horská elektrokola
- Modelový rok
- 2026
- Cena
- 189 999 Kč
- Navštívit

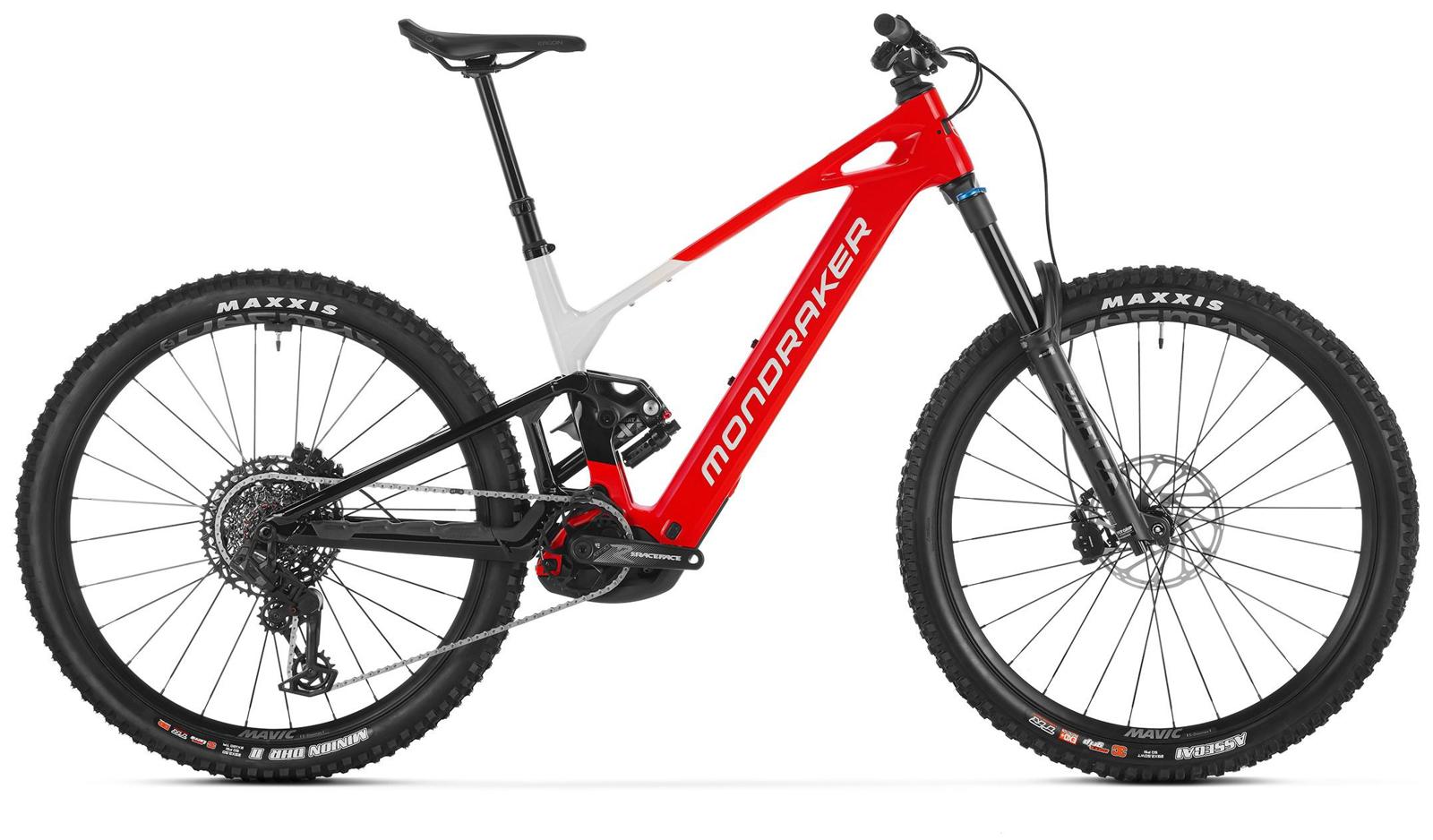

MONDRAKER Crafty Carbon R, chili red
Specifikace Mondraker Crafty Carbon R
- Sezóna
- jaro/léto26
- Barva
- red
- Pohlaví
- UNISEX
- Sport
- cycling PCI
- Rám
- Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
- Velikosti
- S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
- Zadní tlumič
- Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
- Nastavení tlumiče
- CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer
- Vidlice
- Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
- Hlavové složení
- Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
- Představec
- Onoff S6 30mm 0?, 6061 forged alloy + CNC, 31.8mm barbore
- Řídítka
- Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8? backsweep, 5? upsweep, 31.8mm barbore. L and XL size: 38mm rise.
- Sedlo
- Ergon SM-10
- Sedlovka
- Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
- Přední brzda
- Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
- Zadní brzda
- Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
- Brzdové páčky
- Sram Maven Base , SwingLink and lever pivot bushings, tools-free reach adjust
- Ráfky
- Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
- Dráty
- Mavic J-bend double butted, contactless lacing
- Přední náboj
- Mavic, Boost 15x110mm, IS 6 bolts
- Zadní náboj
- Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
- Přední plášť
- Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
- Zadní plášť
- Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
- Kliky
- Race Face Aeffect-R ebike, 160mm
- Převodník
- Sram Eagle 34T T-Type, direct mount, steel, CL55
- Řetěz
- Sram GX Eagle T-Type, 12s, Powerlock
- Přehazovačka
- Sram S1000 Eagle AXS T-Type, 12s
- Řadící páčka
- Sram Eagle AXS Pod MMX, 12s
- Kazeta
- Sram XS-1270, 10-52T, T-Type, 12s
- Displej
- Kiox 400 / Bosch Mini Remote
- Motor
- Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
- Baterie
- Bosch Powertube 800Wh
- Počet převodů
- 1X12
- Velikost kol
- 29
- Patka přehazovačky
- Sram UDH
- Hmotnost
- 24,5 kg
- Typ vidlice
- SUSPENSION FORK
- Materiál rámu
- carbon/aluminium
- Gripy
- Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
- Zadní zdvih
- 150 mm
- Přední zdvih
- 160 mm
