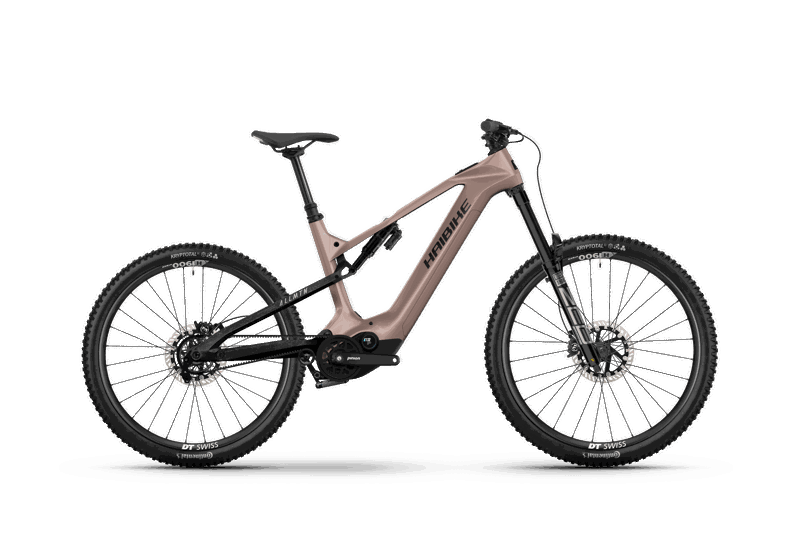

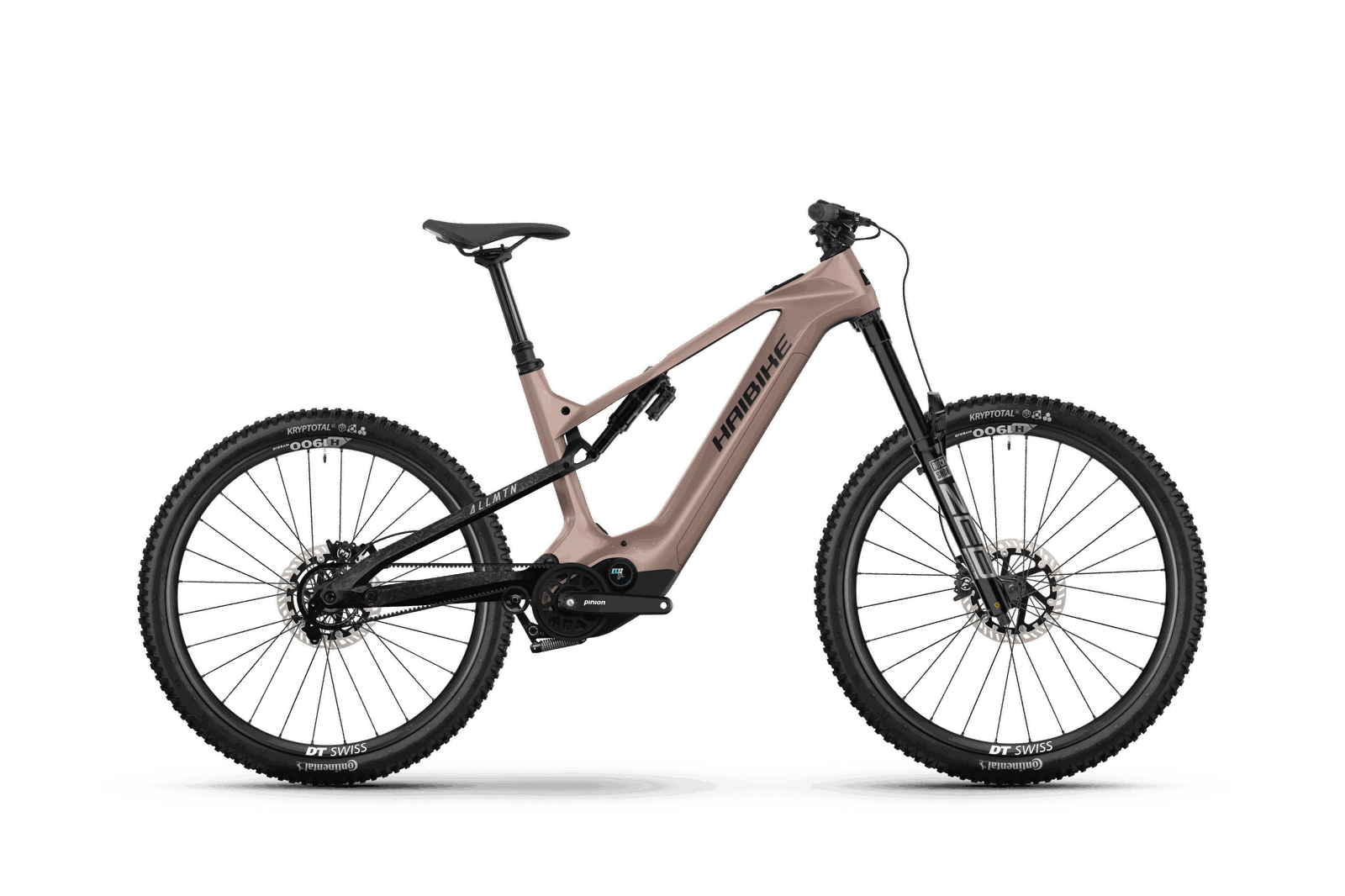

Haibike ALLMTN CF 11 TRN/IQ
- Značka
- Haibike
- Kategorie
- Trailová elektrokola
- Modelový rok
- 2026
- Cena
- 250 799 Kč
- Navštívit
Reach the highest peaks with ultimate riding fun. Our new ALLMTN CF 11 TRN/IQ delivers just that – and even more. This full-suspension eMTB embodies “Next Level Riding” like no other eMountain bike in our range. One key feature is the fully integrated Pinion Motor.Gearbox.Unit (MGU) – an advanced drive technology that combines motor and gearbox in one housing. Supported by the mullet setup, shorter chain stays and improved kinematics with 160mm of travel front and rear, you’ll enjoy an entirely new, intuitive riding experience. And with the 800Wh battery, even the longest Alpine climbs become a breeze, while the high-quality Magura disc brakes bring you safely back down to the valley. Climbing to the highest peaks has never been this fun!
Specifikace Haibike ALLMTN CF 11 TRN/IQ
- Baterie
- Pinion InTube 800Wh
- Battery brand
- Pinion
- Battery capacity
- 800 Wh
- Nabíječka
- Pinion FIT Standard Charger 48V
- Displej
- Pinion FIT Master Node Display + Remote Pure
- E-bike system
- Pinion
- Maximum support speed
- 25 km/h
- Motor
- Pinion E1.12 Motor Gearbox Unit E1.12 Motor Gearbox Unit
- Motor torque (nm)
- 85 Nm
- ARTMDL
- HMFT2
- Rám
- High Carbon Uni
- Frame shape
- High
- Materiál rámu
- Carbon
- Maximum loadable weight
- 135 kg
- Kazeta
- Gates Carbon Drive CDX Sprocket, 9 Spline
- Řetěz
- Gates Belt Carbon Drive Belt CDX, 120T
- Kliky
- Pinion Forge Crankset + GATES CDX front sprocket w/ Guard 165
- Gear
- Pinion Gearbox
- Počet převodů
- 12
- Řazení
- Pinion Triggershift Smart Shift TE1 E-Trigger
- Front Fork
- Rockshox ZEB Ultimate Charger 3.1 RC2, DebonAir 160 mm
- Zadní zdvih
- 160 mm
- Tlumič
- Rockshox Super Deluxe Ultimate RC2T 230x60mm, DebonAir
- Přední zdvih
- 160 mm
- Brake light
- No
- Brake Rear
- Magura Hydraulic Disc brake MT5, 4 pistons, 203 mm
- Přední brzda
- Magura Hydraulic Disc brake MT5, 4 pistons, 203 mm
- Grip kind
- MTB Grip Set VLG-1751D2
- Handgrip brand
- XLC
- Řídítka
- Haibike Flat bar TheBar++ Dia. 31.8 mm
- Pedál
- VP VPE-527 Alloy w/ Reflector
- Sedlo
- Selle Royal Vivo 1216HRN
- Front wheel size
- 29
- Rear wheel size
- 27.5
- Tyre
- Continental Kryptotal-Fr, Enduro Soft, foldable skin SL 60-622
- Tyre size ETRTO
- 60-622
